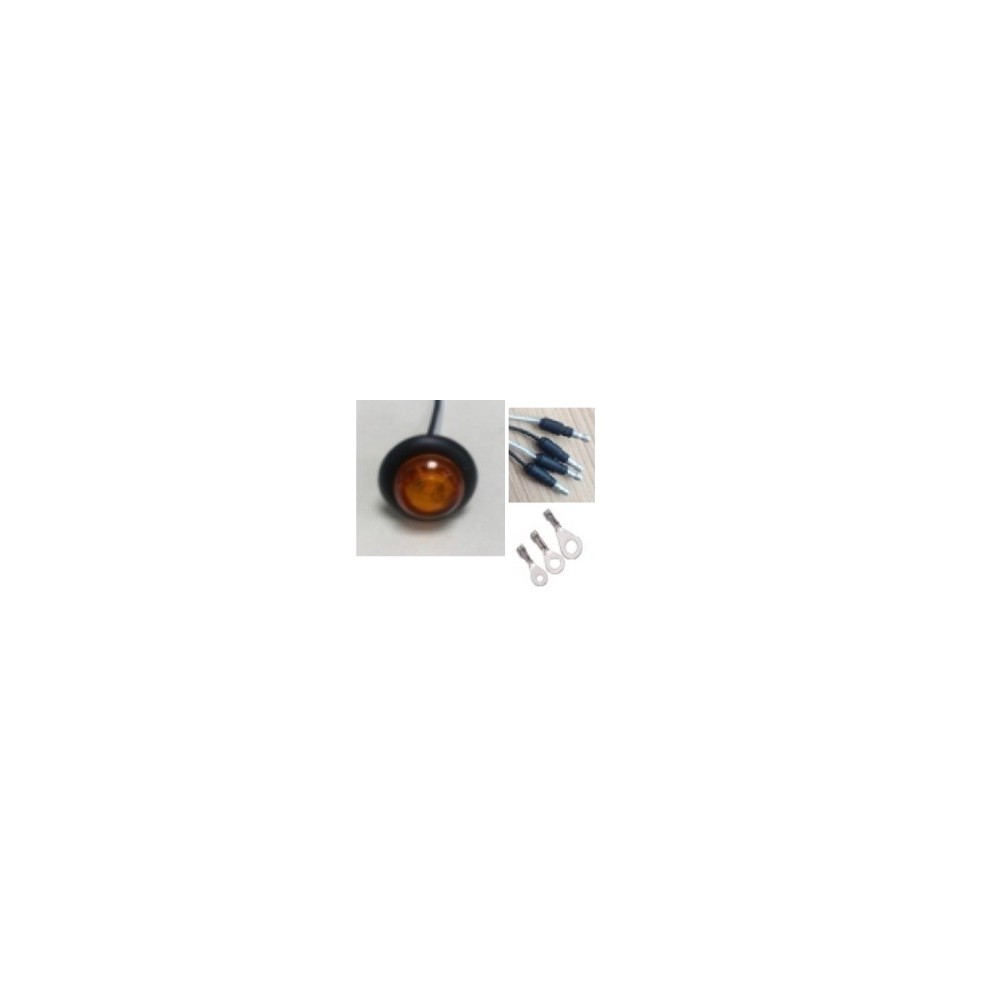

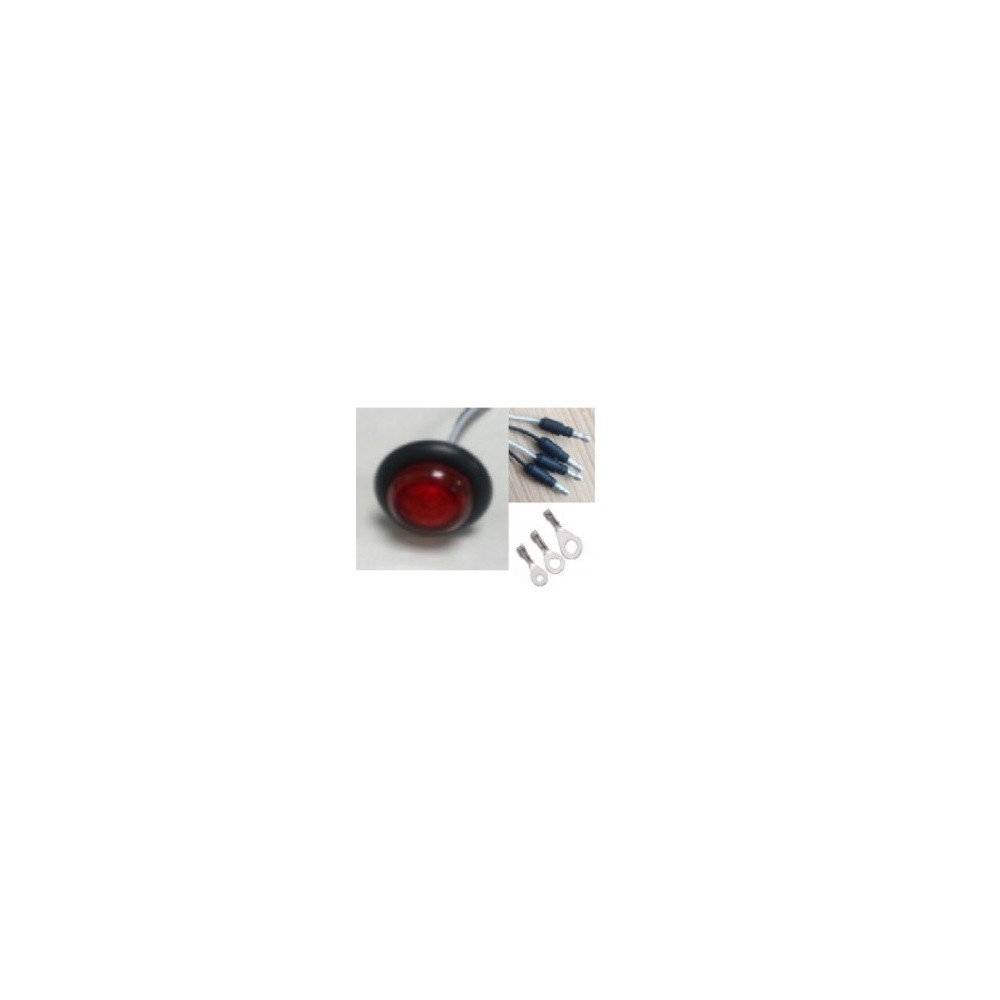

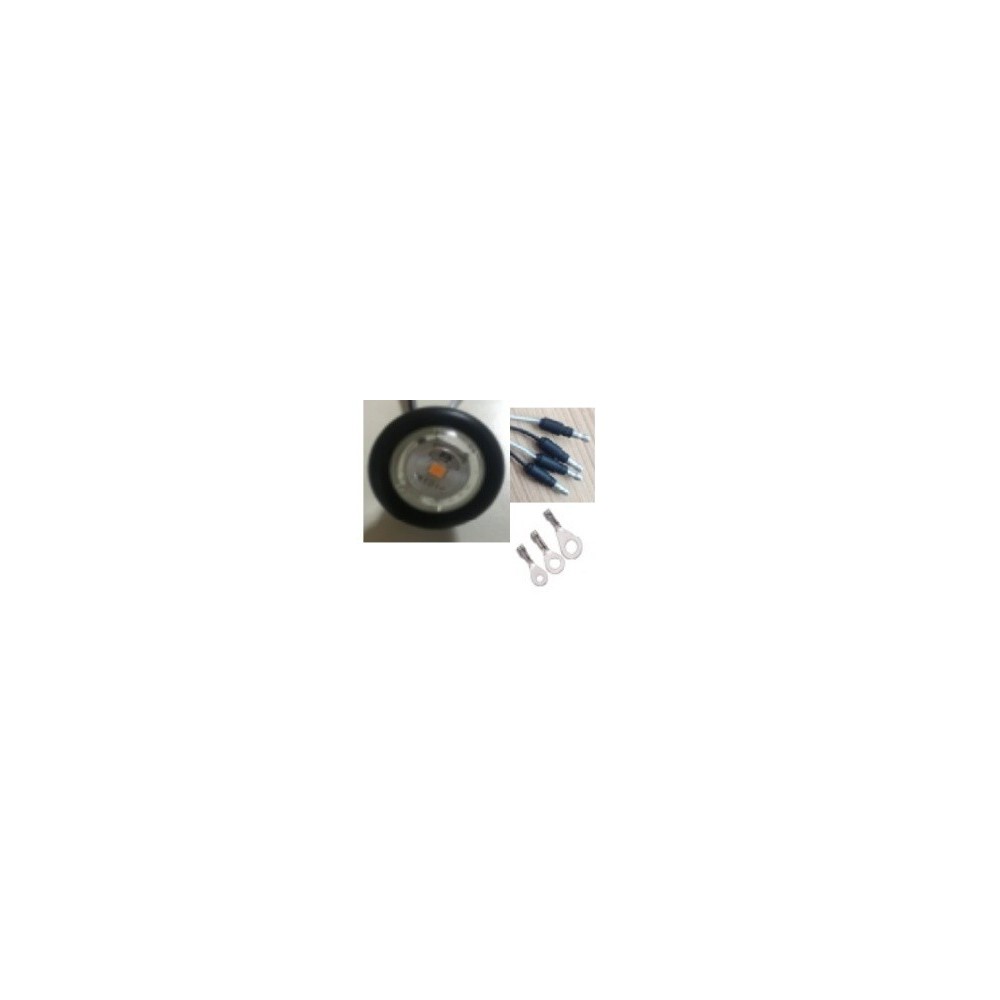

12V LED 3/4" Bullet Light Amber/Red/Clear Lens  10" Lead with 180 Male Plug  3/16" Ring Terminal

12V LED 3/4" Bullet Light Amber/Red/Clear Lens 10" Lead with 180 Male Plug 3/16" Ring Terminal

CM75AC-PGR10
Lens color & Lighting color : Clear lens,Amber lighting
Out of Stock


12V LED 3/4" Bullet Light Amber/Red/Clear Lens

• Bright & Clear: Available with an Amber, Red, or Clear lens (with an amber diode) for high-visibility signaling.
• Easy Installation: Pre-wired with a 10" lead, a 180-degree male plug, and a 3/16" ring terminal for versatile connections.
• Durable Design: Features a tough polycarbonate housing with a "no orientation" design for flexible mounting in any position.
• Universal Fit: Ideal for motorcycles, cars, trucks, boats, trailers, and industrial equipment.

  Technical Data
  Part Number   CM75A-PGR10   CM75R-PGR10   CM75AC-PGR10
  Polypack
  Image amber-led-clearance-light-100.jpg 12v-led-side-marker-lights.jpg 12v-led-side-marker-lights.jpg
  Voltage Range   10-15volt   10-15volt
  Current Type   Direct Current   Direct Current   Direct Current
  Lumens Output   15lm   4.5lm   20lm
  Lighting Color   Amber   Red   Amber
  Base Material   Polycarbonate   Polycarbonate
  Wavelength   580-590nm   620-625nm   580-590nm
  Lens Material   Polycarbonate   Polycarbonate  Polycarbonate
  Lens Color   Amber   Red  Clear
  Currency   33mA   32mA  33mA
  Power Consumption  0.5W   0.5W  0.5W
  Waterproof   IP65  IP65   IP65
  Dimmable   YES   YES   YES
  Mounting   Recessed Mount   Recessed Mount   Recessed Mount
  Dimensions (inch)

: CM75AC-PGR10
Out of Stock

Specific References

MPN
CM75A-PGR10&CM75R-PGR10&CM75AC-PGR10
