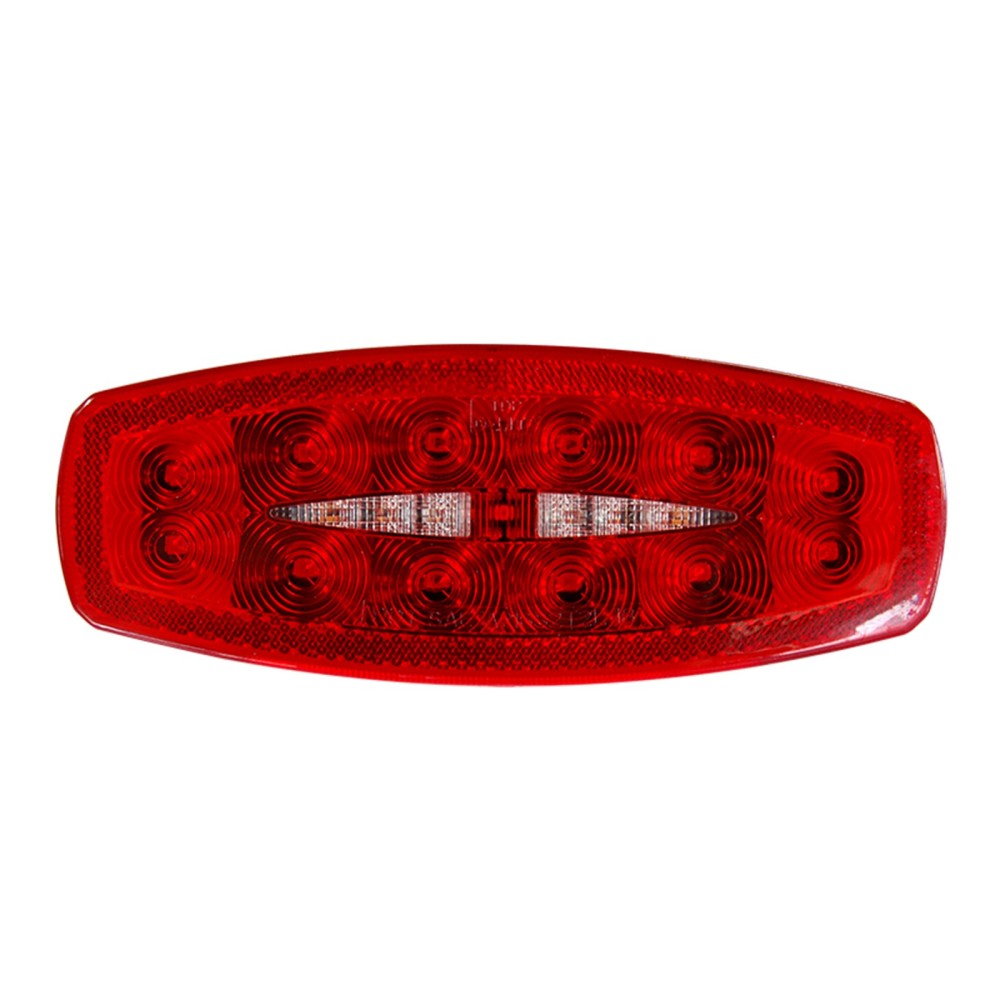

12V LED Tail Light with Reflector Driver Side No Bracket RV Trailer Red Lighting


12V LED Tail Light with Reflector Driver Side No Bracket RV Trailer Red Lighting

TC1SR2D-N1
Out of Stock


 12V RV Tail Light with Reflector Driver Side
 Red Light No Bracket

• Anti-UV PC materials for high quality housing to avoid excessive exposure under sunshine.
• Appropriate for the rough road or other difficult working conditions.
• IP55 Waterproof rate keep moisture or dust ingress away at ease.
• Econ LEDs specializes in energy efficiency, no more electricity bill burden to your purse.
• Pioneered heat dissipation technology extends its long diode life.
• Wiring Connection Guide:
1. Running Light Mode: Low brightness,BLACK wire for positive,WHITE wire for negative.
2. Brake Light Mode: Higher brightness,RED wire for positive,WHITE wire for negative.

  Technical Data
  Part Number TC1SR2D-N1
  Polypack
  Image fender-light-assembly.jpg
  Voltage Range   12.8volt
  Current Type   Direct Current
  Wavelength   620-625nm
  Lighting Color   Red
  Lens color   Red
  Base color   Black
  Lens Material   PC
  Dimmable   Yes
  Currency   45mA / 220mA
  Lumens Output   7.5lm (running light) / 60lm (brake light)
  Power Consumption   0.6W / 2.5W
  Waterproof Rate   IP55
  Mounting   Surface Mount

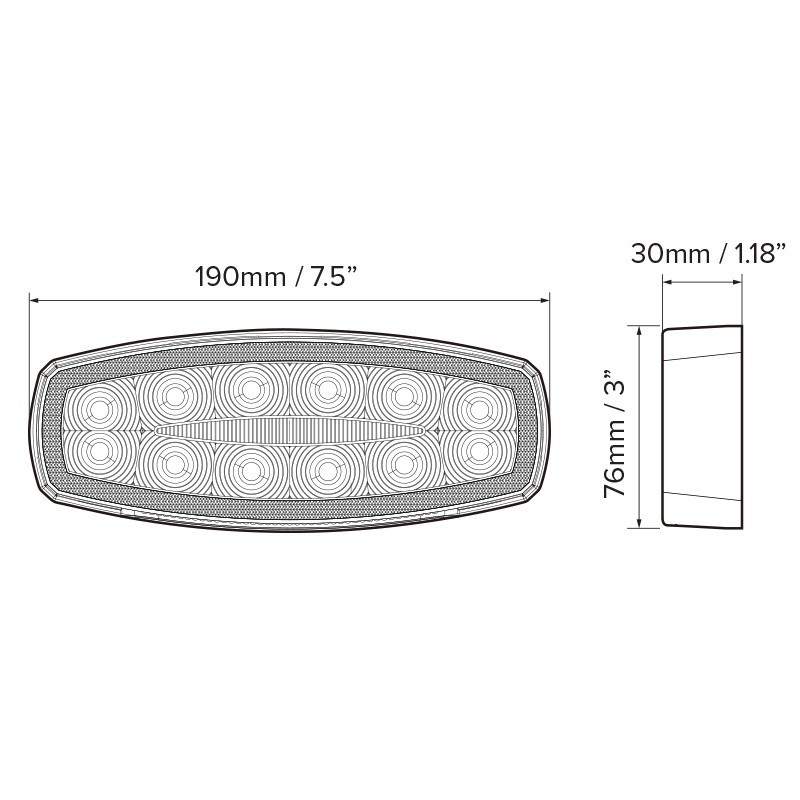

  Dimensions (inch)   7.5 X 3 X 1.18

: TC1SR2D-N1
Out of Stock

Specific References

MPN
TC1SR2D-N1
